Technical Overview

Code-traceable engineering narrative

This page explains how Pho Logic turns stage data and player input into a stable, animated match-3 board. It focuses on the architectural choices that carry the most risk: logical/render state separation, asynchronous turn ordering, special-effect timing, data-authored content, and local persistence.

Scope

Pho Logic is a student portfolio project. The description below is based on version 1.0.0+6 in the repository. Platform wrapper directories show intended Flutter targets; they do not prove that every target has passed a release qualification process.

Full architecture reference Game Design Document Source repository

Executive Summary

Pho Logic uses a hybrid Flutter/Flame architecture:

• Flutter owns application startup, routing, screen layout, HUD state, dialogs, settings, inventory gestures, and safe-area scaling.
• Flame owns the embedded board scene, tile components, movement, selection feedback, particles, and special VFX.
• Pure Dart models and services own the logical grid, swaps, matches, special rules, gravity, refill, objective progress, and persistence.

The central rule is that GridModel is authoritative. Rendering is a projection. A tile's logical coordinate can change many times during one turn, so tileInstanceId preserves identity while Flame animates an existing component to its new location.

flowchart TB
    subgraph Content
      Stage[Stage JSON]
      Layout[Layout JSON]
      Tuning[SFX tuning JSON]
    end

    subgraph Flutter
      Screens[Menu / World / Gameplay]
      State[GameStateModel]
      Inventory[InventoryModel]
      Viewport[BoardViewport]
    end

    subgraph Flame
      Game[BoardGame]
      Components[Tile / Bed / Blocker components]
      VFX[Special and particle VFX]
    end

    subgraph Rules
      Grid[GridModel]
      Controller[BoardController]
      Resolvers[Special spawner / activation / combo]
    end

    Stage --> Grid
    Layout --> Screens
    Tuning --> Game
    Screens --> Viewport
    Viewport --> Game
    Game --> Controller
    Controller --> Grid
    Controller --> Resolvers
    Grid --> Game
    Game --> Components
    Game --> VFX
    Game --> State
    Inventory --> Viewport

Technology and Dependency Surface

Layer	Technology	Repository role
Language/runtime	Dart >=3.0.0 <4.0.0	Application, rules, and tooling language
UI framework	Flutter	Screens, layout, dialogs, routing, and platform shell
Game engine	Flame ^1.22.1	Board scene, components, callbacks, and effects
Short SFX	flame_audio	Pooled event sounds
BGM	audioplayers	Looping background tracks
Local state	shared_preferences	Inventory, results, language, and cooldown
External actions	url_launcher	Optional Google Forms feedback
Logging	logger plus project wrappers	Debug diagnostics
Windows packaging	msix	MSIX configuration

No backend client, account SDK, cloud database, analytics SDK, dependency injection framework, or Google Mobile Ads package is declared in the current pubspec.yaml.

Repository Boundaries

lib/src/
|-- app/                 MaterialApp and routes
|-- audio/               Global BGM and SFX managers
|-- game/
|   |-- board/           Rule orchestration, board rendering, and special logic
|   |-- inventory/       Booster data and persistence
|   |-- model/           Grid, cell, coordinate, and match records
|   |-- progress/        Latest stage result
|   |-- stages/          Parse, build, and validate stage data
|   |-- utils/           Weighted picking and debug logging
|   `-- vfx/             Effect-specific Flame sequences
|-- screens/             Menu, world, gameplay, help, settings, and modals
|-- utils/               JSON/layout helpers and cooldown
`-- widgets/             Reusable Flutter UI

This organization follows runtime ownership rather than framework type alone. For example, BoardGame lives with game-board code even though it is a Flame class, while BoardViewport lives with gameplay screens because it bridges Flutter layout and Flame input coordinates.

Startup and Screen Flow

main.dart initializes Flutter, applies a mobile-only orientation lock, initializes both audio managers, and runs PhoLogicApp. The app installs a global navigator key and a pointer listener used to retry browser BGM after a user gesture.

Routes.getRoutes() registers the menu, one world map, and 25 generated gameplay paths:

/menu
/world/1
/gameplay/1 ... /gameplay/25

The gameplay route owns a new session. It loads the shared gameplay-layout JSON and the selected stage JSON, creates GameStateModel, embeds BoardViewport, and listens for derived win/loss changes.

sequenceDiagram
    participant Player
    participant Screen as GameplayScreen1
    participant Loader as StageLoader
    participant Viewport as BoardViewport
    participant Game as BoardGame
    participant Rules as BoardController

    Player->>Screen: Open stage N
    Screen->>Loader: Load stage_NNN.json
    Loader-->>Screen: StageData
    Screen->>Viewport: Data + HUD state + scaled rectangle
    Viewport->>Game: Construct with GridModel
    Game->>Rules: Construct and attach callbacks
    Game->>Rules: Assign instance IDs and stabilize
    Game-->>Player: Render interactive board

JSON-authored Presentation

Menu, world, and gameplay layouts share a 1080x1920 design coordinate space. For each screen:

scale = min(usableWidth / 1080, usableHeight / 1920)

The scaled design is centered in the safe area. Web scale is capped at 1.0. Position and size values remain in the authoring coordinate space and are transformed into screen pixels at build time.

Gameplay defines a separate board rectangle:

{
  "gridRect": {
    "x": 120,
    "y": 325,
    "w": 850,
    "h": 1260
  }
}

BoardViewport occupies that rectangle. BoardGame then computes tile size using the smaller of viewport-width-per-column and viewport-height-per-row, ensuring that the complete 8x7 grid fits.

Trade-off: contain scaling preserves the original composition and avoids per-device hardcoding, but very different aspect ratios can produce unused space. JSON also moves some errors from compile time to runtime.

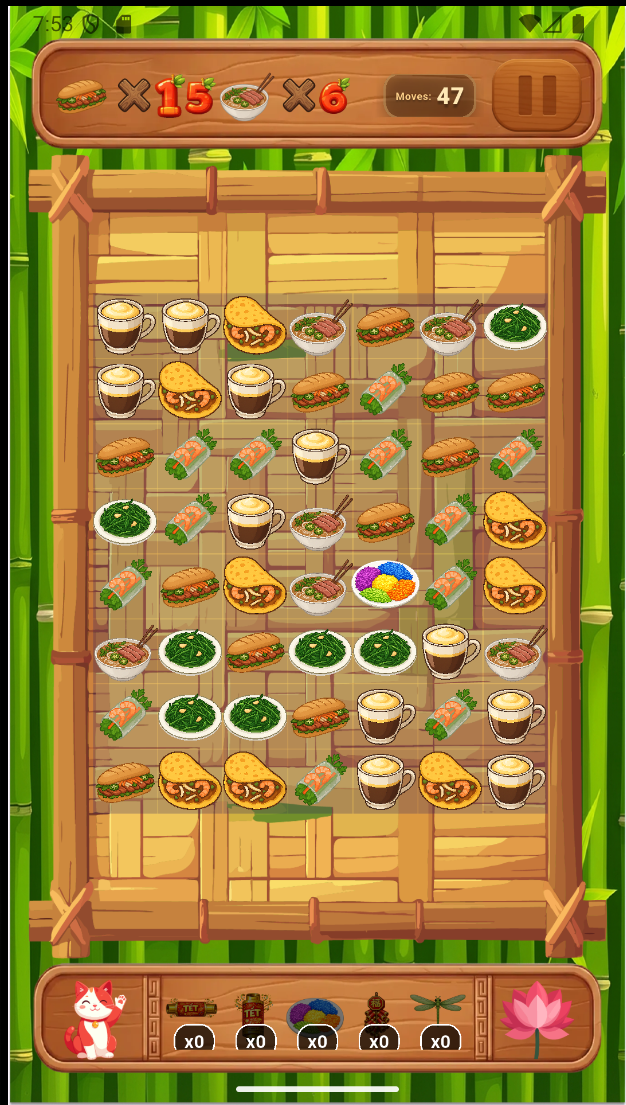

Flutter HUD composition around the Flame board viewport.

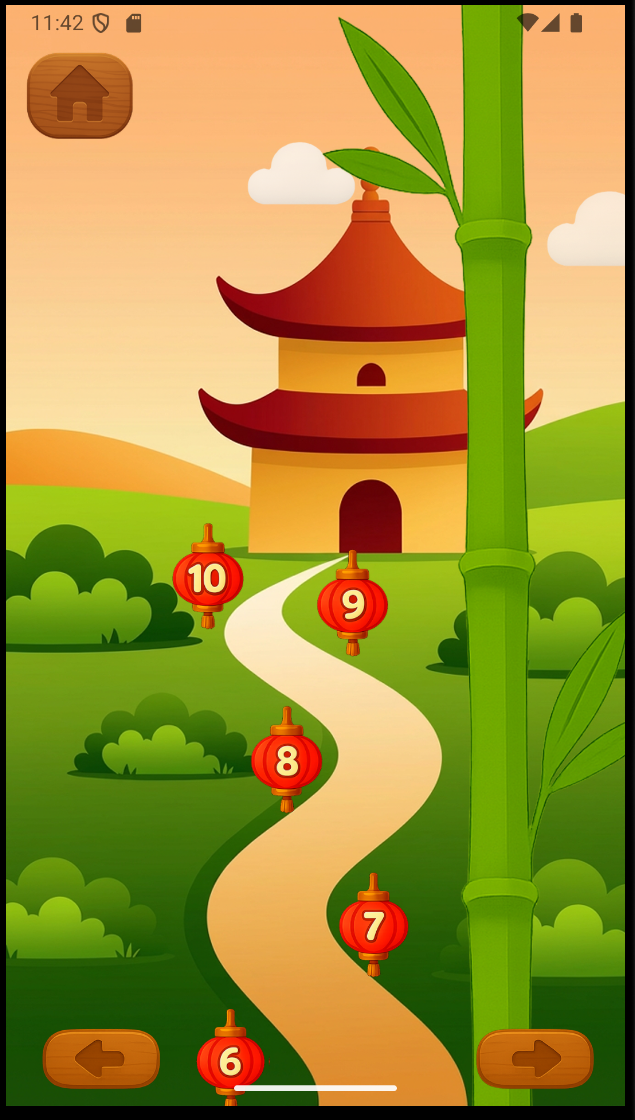

Five-lantern page composition in the world screen.

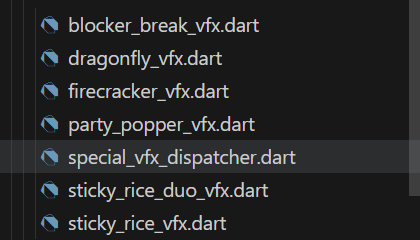

Portfolio diagram supporting the VFX implementation narrative.

Stage Data Pipeline

Every current stage is an 8x7 JSON file with:

• Regular tile definitions and spawn weights.
• Bed types and bedMap.
• Optional blocker definitions.
• tileMap initial content.
• Move budget and collection objectives.
• allowInitialMatches.

The current sentinel values are 0 weighted spawn, -1 void, -2 scooter blocker, and positive fixed tile IDs.

flowchart LR
    File[stage_XXX.json] --> Parse[StageData.fromJson]
    Parse --> Resolve[StageLoader resolves weighted cells]
    Resolve --> Build[StageBuilder creates BoardState]
    Build --> Grid[GridModel creates Cells]

StageValidator checks dimensions, references, and weights, but the runtime load path does not call it. StageLoader and StageBuilder also both own weighted-spawn logic. Consolidating those responsibilities would make initial-match prevention and validation easier to reason about.

Logical Board Model

GridModel contains a matrix of Cell objects. A cell can carry a regular or special type ID, a stable instance ID, a bed ID, and blocker state. Coord(row, col) is immutable and acts as the common key between rules, rendering, VFX, and objective events.

Core Invariants

1. A cell with bedId == -1 is outside play.
2. A blocker occupies its own cell, rejects swaps, and divides gravity.
3. Regular tile IDs are below 101; special IDs are 101..105.
4. Refill creates only regular tiles.
5. A moved tile preserves tileInstanceId.
6. A newly refilled tile receives a new instance ID.
7. Rendering registries must converge to the model after each sync.

These invariants matter because one turn can mutate many coordinates before animation completes. Identity-by-coordinate would be ambiguous during swaps and gravity.

Turn Transaction

BoardGame accepts two adjacent taps and delegates to BoardController.attemptSwap(). A busy flag blocks overlapping input until the transaction returns.

flowchart TD
    Input[Adjacent pair] --> Guard{Playable, tiled, unblocked?}
    Guard -- no --> Reject[Reject]
    Guard -- yes --> Swap[Swap model cells]
    Swap --> Sync1[Animate model positions]
    Sync1 --> Valid{Line, 2x2, or special?}
    Valid -- no --> Undo[Swap back and animate]
    Valid -- yes --> Resolve[Resolve clears and specials]
    Resolve --> Gravity[Gravity]
    Gravity --> Refill[Weighted regular refill]
    Refill --> Cascade{Another line or 2x2?}
    Cascade -- yes --> Resolve
    Cascade -- no --> Solvable{Legal move or special exists?}
    Solvable -- no --> Shuffle[Shuffle and sync]
    Solvable -- yes --> Move[Consume one move]
    Shuffle --> Move

The controller calls an asynchronous onSync callback after mutation boundaries. BoardGame uses it to run syncFromModel() and then validateBoardSync(). This creates a transaction-like rhythm without coupling the rule engine to Flame classes.

Match Detection

Line detection scans regular tiles horizontally and vertically. It ignores voids, blockers, empty cells, and special IDs. A simulated validity check accepts a swap that creates a line, a same-type regular 2x2 around the swap, or includes a special.

Clear, Gravity, and Refill

Before clearing, the controller captures coord -> regular tile type. That event supports both objective progress and object-specific particles after the model cells have been emptied.

Gravity works in vertical segments. A blocker stops traversal, so a tile above it never falls through to the segment below. Refill fills only empty, playable, non-blocker cells from stage-authored regular weights.

The cascade loop has a 10-pass safety cap. When stable, the board shuffles only if it has no possible move and no special tile.

Special System

Special behavior is divided into three policies:

1. SpecialTileSpawner recognizes creation patterns and chooses spawn cells.
2. SpecialActivationResolver computes a normal swap activation.
3. SpecialComboResolver expands a special-to-special pair into ordered steps.

ID	Created by	Logical effect
101	Four horizontal	Playable row
102	Four vertical	Playable column
103	Five straight	All regular tiles matching its swap partner
104	T/L union of 5 or 6	Centered playable 3x3
105	Same-type regular 2x2	Swap partner plus one deterministic target and source cleanup

Candidates are sorted Sticky Rice, Firecracker, Dragon Fly, then Party Popper. The spawner greedily accepts non-overlapping patterns and protects each accepted spawn coordinate from the clear set.

The combo resolver does not simply union two effects. It returns ordered ComboStep records, allowing color clears, pre-hits, row/column clears, and 3x3 effects to run in a defined sequence. The GDD combination matrix records every current pair.

Horizontal Party Popper uses projectile timing for row-clear feedback.

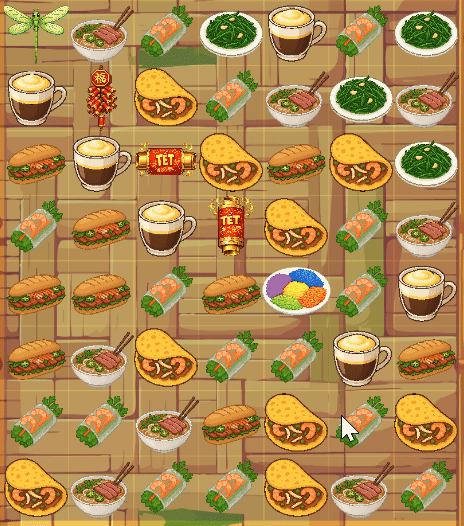

Sticky Rice Bomb clears every regular tile of the selected partner type.

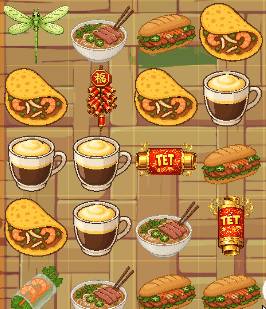

Firecracker owns the visible centered 3x3 impact.

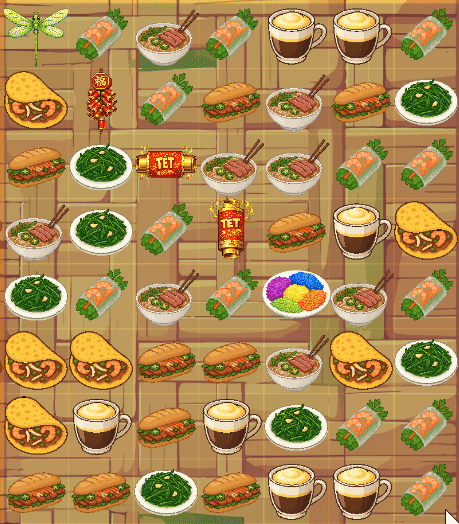

Dragon Fly target metadata keeps flight and logical clearing aligned.

Flame Rendering and Synchronization

BoardGame extends FlameGame with tap callbacks and a fixed-resolution camera matching the Flutter viewport. It owns:

Registry	Role
tilesByInstanceId	Stable identity to tile component
instanceAtCoord	Current coordinate to instance
coordByInstanceId	Instance to current coordinate
bedComponents	Static bed component by cell
blockerComponents	Scooter component by cell

syncFromModel() builds replacement coordinate maps, animates existing components whose instance IDs moved, updates sprite types, creates missing components, and removes orphans. It replaces the coordinate maps as a unit.

validateBoardSync() is a defensive repair pass. It is valuable while the prototype evolves, but repeated repair should not substitute for proving each mutation preserves the registry invariants.

Clear and VFX Timing

VFX ownership differs by effect:

• Party Popper and Firecracker clear cells at exact impact times by calling back into BoardGame.clearTilesAtCoords().
• Sticky Rice and Dragon Fly animate using target metadata, then the controller completes their logical clear path.
• A suppression set prevents automatic burst particles where the special VFX already emitted an impact.
• Specials caught in another special's affected set are removed without recursively starting another VFX.

This design avoids uncontrolled overlapping animations, but it also means the game does not implement general special-chain propagation.

Objectives and Blockers

GameStateModel owns moves, collection progress, initial/remaining blocker counts, and derived terminal states.

won  = all collection objectives complete
       AND (no initial blockers OR blockers remaining == 0)

lost = moves remaining <= 0 AND not won

Only captured regular victim IDs update collection progress. Special IDs are filtered out.

A scooter blocker:

• Rejects swaps.
• Occupies a cell without a tile.
• Stops gravity across its position.
• Breaks from an adjacent regular-match clear.
• Does not currently break from a special clear.
• Must be removed to win any stage that started with scooters.

The blocker-break callback plays an exit animation before the controller removes the pending blocker and decrements game-state count.

Inventory and Persistence

InventoryRepository stores a JSON map of special ID to count under player_inventory_v4. Defaults are zero. A booster drag can replace a playable regular tile with its special ID; the inventory then spends one item and the board synchronizes.

Non-atomic booster transaction

Placement currently occurs before the asynchronous inventory spend. If spending fails, the code logs an error but does not restore the original tile. A production-quality implementation should reserve/spend first or model placement and spend as one rollback-capable operation.

Stage progress stores the latest cleared or lose result by stage. Language and the 45-second free-boost timestamp also use local preferences. There is no first-party account or cloud synchronization layer.

Audio

SfxManager uses Flame AudioPool for low-latency event sounds and reads per-sound settings from assets/audio/sfx_tuning.json. BgmManager uses audioplayers for looping menu, gameplay, and festival tracks.

Browser autoplay can reject BGM startup. Instead of treating that as a fatal error, the manager retains a pending request and retries after the app-level pointer listener observes user interaction.

Global singleton managers are pragmatic at this project size. The trade-off is testability: call sites cannot replace them without additional seams.

Implemented Performance Measures

• Tile-definition and bed-definition maps avoid repeated linear lookup.
• Stable instance registries avoid rebuilding every moving tile.
• Sound effects are pooled and preloaded.
• Stage files are loaded on demand.
• Large clears reduce generic particle complexity.
• Input is serialized by the board busy flag.
• The cascade loop and shuffle attempts use safety limits.
• Web layouts do not upscale beyond the 1080x1920 design reference.

These measures are visible in code. The repository does not include frame-time profiles, memory traces, device matrices, or benchmark results, so numerical performance claims would be unsupported.

Failure Handling

Failure area	Current behavior
Stage/layout load	Screen catches and shows an error state
Audio startup	Logs failure; web BGM can retry after interaction
Inventory load	Falls back to defaults and saves them
Invalid swap	Restores original cells and does not spend a move
No legal move	Shows a wait modal and shuffles
Render/model drift	validateBoardSync() repairs missing or orphaned components
Cascade runaway	Stops after 10 passes and logs a warning

Logging is extensive and useful during development, but many hot paths produce verbose output. Release builds should define a deliberate logging policy.

Testing and Verification Status

The repository currently has no meaningful automated coverage. test/widget_test.dart is Flutter's counter-app example and references a MyApp class absent from this project.

The highest-value test order is:

1. Pure match, 2x2, gravity, solvability, and special-resolver tests.
2. A content test that parses and validates all 25 stages.
3. Seeded board tests for initialization and shuffle postconditions.
4. Widget tests for routes, HUD updates, and terminal dialogs.
5. Integration tests for a full valid/invalid turn and booster rollback.
6. Golden screenshots for menu, world, and gameplay compositions.

The architecture testing strategy defines the expected cases in more detail.

Known Constraints

Severity	Constraint	Consequence
High	Win next-stage logic uses <= 20	Stage 20 returns to the world instead of advancing into the five-stage endgame
High	Booster placement/spend is not atomic	Inventory and board can diverge
High	Automated test scaffold is invalid	No reliable regression gate
Medium	Stage validation is disconnected	Bad content can fail late
Medium	Weighted spawn has duplicate ownership	Initialization policy is harder to prove
Medium	Stage 21 zero-weight fixed specials conflict with validator rules	Test-arena content cannot pass the validator as currently written
Medium	Special and regular clears affect scooters differently	Design and implementation must stay explicitly aligned
Low	A stale Android activity exists under an older package path	Platform configuration is noisier than necessary
Low	Web manifest still contains scaffold metadata	Installed-web presentation is inconsistent with the game

Advertising Learning Exercise

The site and repository retain app-ads.txt for a demo AdMob/app-publishing exercise. The current source does not initialize an ads SDK and the package manifest does not declare Google Mobile Ads. The active reward path grants local boosters after a prototype cooldown.

This distinction matters in a portfolio: learning intent can be documented without implying a production monetization integration.

Engineering Takeaways

The strongest part of this implementation is the decision to separate logical board truth from frame-timed presentation. That enables:

• Deterministic reasoning about swaps and cascades.
• Stable visual identity across coordinate mutations.
• Special effects that can stage their impact without becoming the owner of objective progress.
• JSON-authored content that does not modify the core rule engine.

The next quality step is not more features. It is tightening contracts: connecting validation, removing duplicate ownership, making inventory transactions atomic, fixing campaign navigation, and establishing deterministic tests. Those changes would turn a capable student MVP into a substantially more reliable engineering portfolio artifact.

Continue Reading

• System Architecture
• Game Design Document
• Board Engine Guide
• BoardGame Rendering Reference
• BoardController Rules Reference
